Board size standard 1400 x 800 mm - Maxi 1600 x 850 mm.

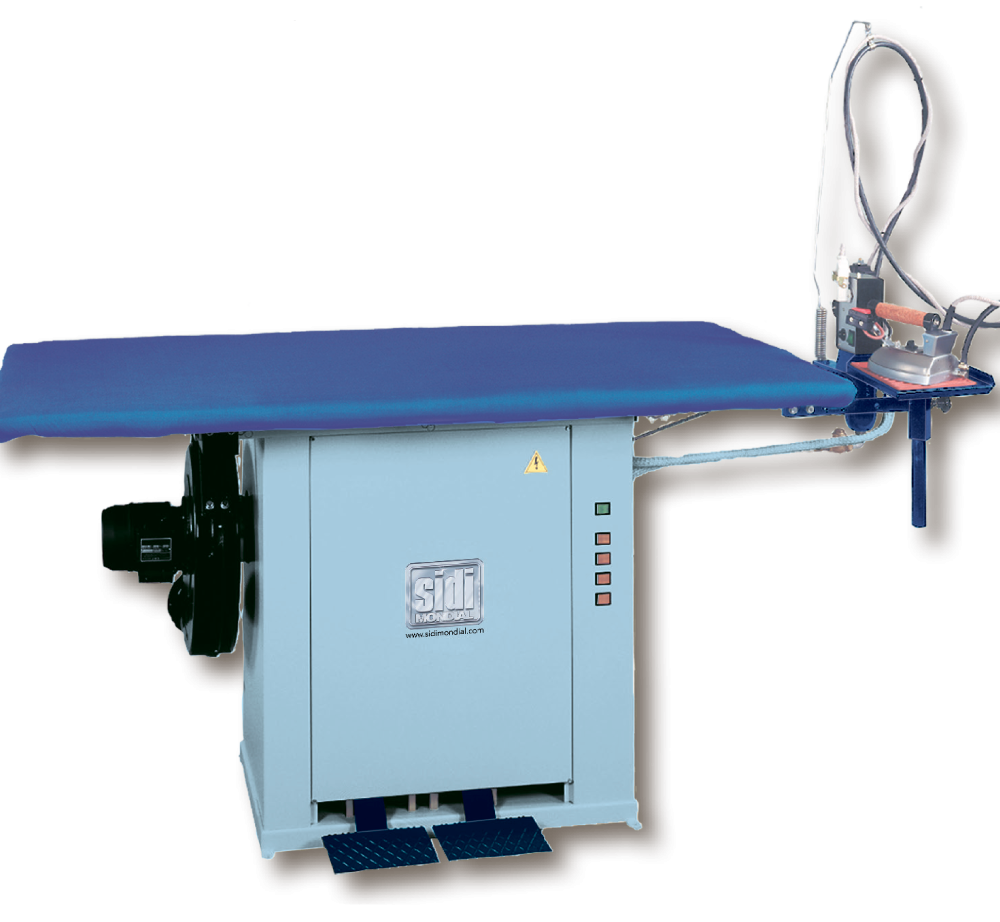

STEAM and VACUUM board.
Versions either with or without built in vacuum unit, with or without boiler.
Available extras:
- Steam iron assembly with iron
- Upper manual frame
- Sloping board (horizontal as standard)
- Front and rear curtain holder.
| Equipment | Ironing tables | Required power | 230 V/1 or 400V/3+N/50 Hz* 110 V/1 or 220 V/3/60 Hz* |
| Pump Motor | 0,4 kW | Vacuum Motor | 0,55 kW |
| Water feeding | tubo gomma Ø 13 mm - 0,5 in | Boiler drain | 1/2” |
| Steam Inlet | 1/2” | Boiler heating element | 12-15-18 kW - 1,2-1,5-1,8 BHP |
| Return outlet | 1/2” | Steam working pressure | 4,5 bar - 65,26 psi |
| Steam consumption | 15 ÷ 20 kg/h - 33 ÷ 44 Lbs/h | Iron heating element | 0,8 kW |
